AD3015HT6

Model No.

AD4020HT6

AD6020HT6

AD6025HT6

Cutting Area

3000x1500mm

4000x2000mm

6000x2000mm

6000x2500mm

Tube Diameter

φ10-220mm □10-150mm

Tube Length

3000mm / 6000mm optional

Max Tube Weight

100kg

X/Y Positioning Accuracy

±0.03mm/m

X/Y Repositioning Accuracy

±0.03mm/m

Maximum Movement Speed

60m/min

Laser Power

1000W-6000W

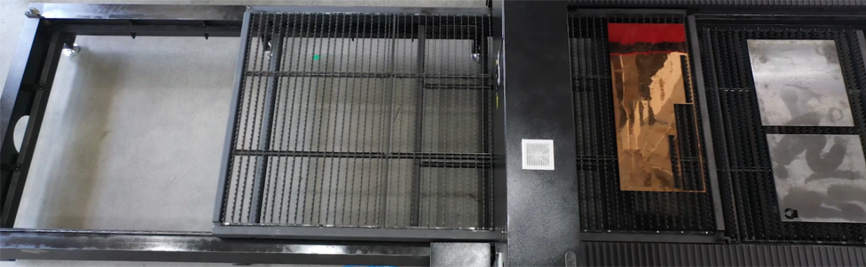

High-speed switching work platform
Parallel exchange of double worktables

Equipped with an intelligent control exchange motor, the machine tool working platform can complete the exchange in the fastest 12 seconds, saving the loading and unloading time, the chain transmission system is adopted, which has a strong carrying capacity and greatly improves work efficiency.

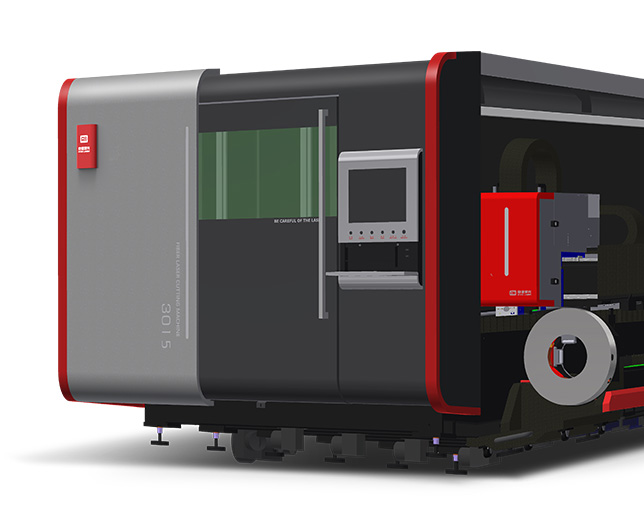

Sheet metal large enclosure structure
closed protective cover

• Effectively block the smoke or splashes generated during processing, create a smoke-free and dust-free workplace, ensure environmental protection and safety. and make the production process worry-free.
• The four corners of the protective cover are designed with a unique arc design, and the appearance is square and round.

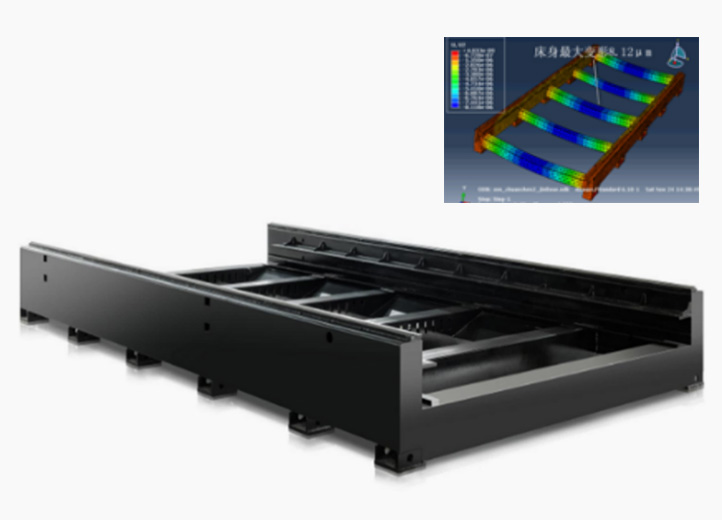

Hive-style Steel Plate Welding Structure

• The hive-type structure welding with steel plate, is a special geometry for aerospace, and its rigidity is the best to meet the requirements of high-speed motion, which can prevent deformation within 20 years and maintain the machine performance of high accuracy.

• The store-stain relation, fatigue life, and thermal field of the frame structures are analyzed using the finite element method. By selecting the most appropriate solutions in terms of materials and structure, the stability and precision of the machines are ensured.

• Manufacturing Process: welding main frame -completely de-stress annealing at 580’C -natural aping for more than half a year-vibration aping-roughing secondary vibration aging – semi-finishing – finishing – brushing protection paint.

One-piece Extruded Aluminum Beam

•Based on the metal characteristics of aeronautical engineering aluminum alloys, it has lightweight and high rigidity, which ensures high-speed motion during laser processing.

•Perfect dynamic performance. under the condition of satisfying accuracy, high-speed cutting of various graphics can be achieved.

•Long service life, it can keep the shape unchanged to a maximum extent, to ensure cutting accuracy and product quality.

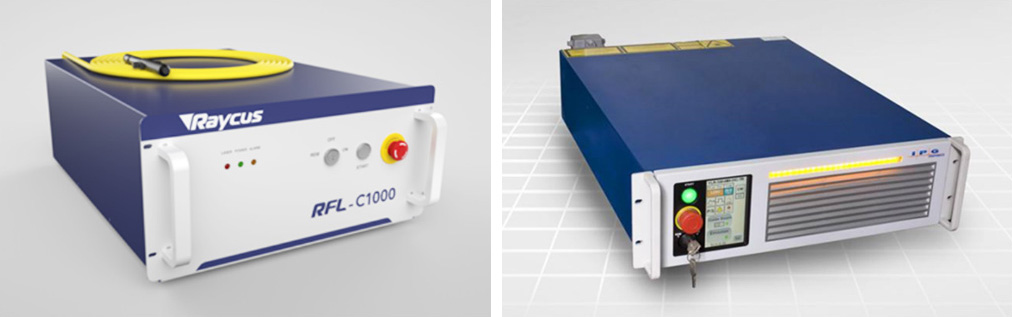

High Quality Configuration

• Electro-optical conversion efficiency:>25%
• Power operating range:10%~105%
• Light beam mass: BPP<2.5
• Service life of pumping source: 100,000h
• Maintenance free

• Completely sealed internal structure can avoid optical parts polluted by dust.

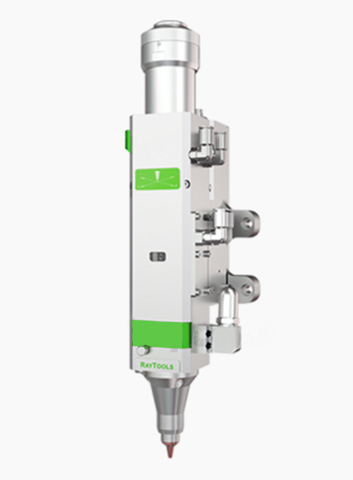

• The collimator lens and focus lens are equipped in a drawer installation way, which is convenient for maintenance and replacement.

• Adopting a water-cooling heat sink inside to reduce the temperature of the cutting head to improve its service life.

Professional Control Software

• Support for DXF, PLT, LXD, and other graphic data formats.

• Find edge: up to 500mm/s high speed with precision find sheet edge, also provide optional find edge patterns to meet your production needs.

• Supports laser power control, in-flight cutting, and jump, continuous cutting at a breakpoint, automatic edge search, keyhole processing, cutting head control, etc.

• Technique: multiple piercing solutions for metal sheets of different thicknesses; piercing slag removal; vibration suppression; close-loop gas control; separate layer technique for large, medium, and small contour cutting, all to expand your machine production capability.

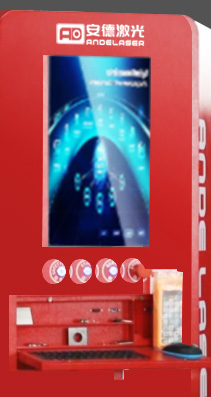

Built-in operating display

The operation display and keyboard are in-built design, which saves cabinet space and reduces the footprint of the equipment in the production site.

Professional Water Chiller

• High precision temperature control function. Temperature control accuracy can reach ±1°C High temp. for QBH connection/ optics and low temp. for laser devices.

• Multiple alarm protection: The laser will stop working once it receives the alarm signal from the water chiller for protection purposes.

• Equipped with water pressure gauges, drain outlet with valve, and universal wheels. Water pres.sure gauges help monitor the discharge pressure of the water pump while universal wheels facilitate the moving of the chiller.

• Dualinlet and dual outlet connector& level gauge equipped. The Chiller inlet connects to the laser outlet connector. The Chiller outlet connects to the laser inlet connector.

• Cooling fan of famous brand installed. With high quality and low failure rate.

• Customized dust gauze is available and easy to take apart.

Other Important Accessories

S&A Chiller

Taiwan Precision Guide Rail

Taiwan Pinion and Rack

Imported Reducer

Imported Servo Motor

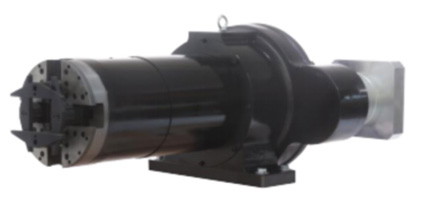

Full Stroke Pneumatic Chuck

Professional Clamp Design

Fractional Automatic Support Installation

• lt adopts a pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm

• Automatic pneumatic chuck, adjustable and stable.

• Non-destructive pipe clamping.

• Fast automatic centering and clamping pipe.

• Gear transmission mode, higher transmission efficiency.

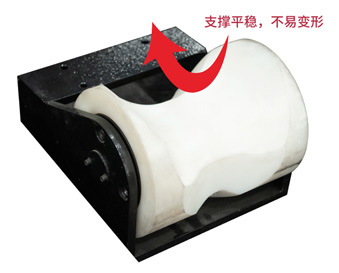

• lt employs intelligent tube support design,which can solve the deformation problemsin the process of long tube cutting.

Ande Services

Quality Control

Ball screw installation test

Laser collimator detectsguide line

Rack gear parallelism test

Marble feet for lathe bedverticality tesr

3 axes coordinate meter tests coordinate setting precision

Quantity production with skilled technique and advanced

Every tiny parts is detected with many times

Measure sample geometrictolerances using 2D imaging device forquality assurance

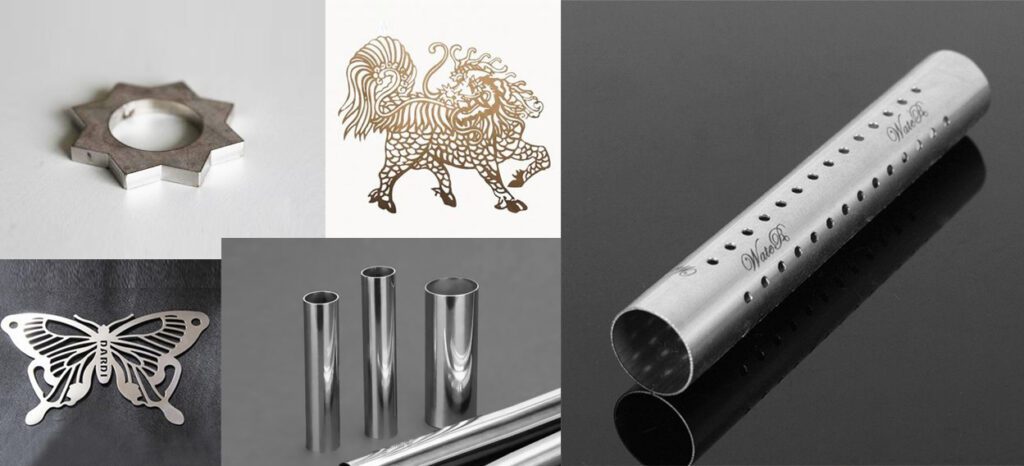

Cutting Samples

Application scenarios

Laser cutting machine: able to cut a variety of metal plates, mainly suitable for rapid cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, aluminum, various alloy plates, and other metal materials; widely used in: kitchen electrical, sheet metal Chassis frame, frame equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment,Various metal products, sheet metal cutting and other industries.
