![AD3015H](https://www.andelaser.com/wp-content/uploads/2021/05/安德激光-产品详情-AD3015H-高功率封闭式光纤激光切割机-英文版2023_01.jpg)
Technical Parameters
Machine Model
AD3015H
Cutting Area
3000x1500mm,4000x2000mm,6000x2000mm,6000x2500mm
X/Y Positioning Accuracy
±0.03mm/m
Max. Movement Speed
140m/min
Max. Acceleration
1.5G
Laser Power
1000W-12000W
Full Coverage Design
![AD3015H Full coverage design](https://www.andelaser.com/wp-content/uploads/2021/05/安德激光-产品详情-AD3015H-高功率封闭式光纤激光切割机-英文版2023_08.jpg)

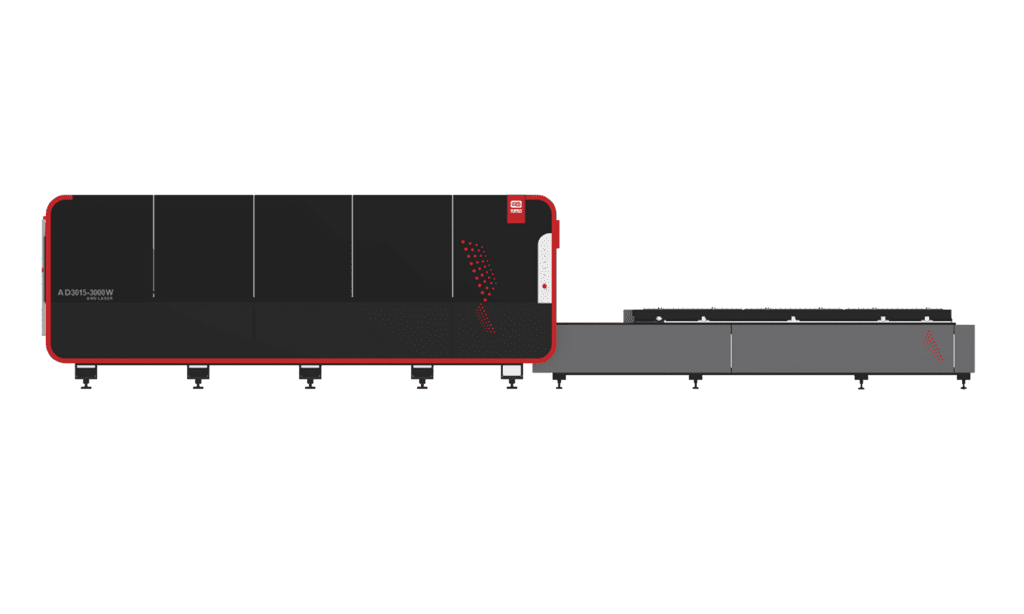

Exchange Platform
![AD3015H Exchange platform](https://www.andelaser.com/wp-content/uploads/2021/05/安德激光-产品详情-AD3015H-高功率封闭式光纤激光切割机-英文版2023_02-1024x614.png)
• It can be cut at the worktable and loaded and unloaded simultaneously to improve production efficiency; the platform exchange time is less than 15 seconds, and the large-format rapid exchange saves time.
Hive-style Steel Plate Welding Structure
![Hive-style Steel Plate Welding Structure(1)](https://www.andelaser.com/wp-content/uploads/2021/06/AD3015E-product-details-1.png)
![Hive-style Steel Plate Welding Structure(2)](https://www.andelaser.com/wp-content/uploads/2021/06/AD3015E-product-details-11.jpg)
• The hive-type structure welding with steel plate, is a special geometry for aerospace, and its rigidity is the best to meet the requirements of high-speed motion, which can prevent deformation within 20 years and maintain the machine performance of high accuracy.
• The store-stain relation, fatigue life, and thermal field of the frame structures are analyzed using the finite element method. By selecting the most appropriate solutions in terms of materials and structure, the stability and precision of the machines are ensured.
• Manufacturing Process: welding main frame -completely de-stress annealing at 580°C -natural aping for more than half a year-vibration aping-roughing secondary vibration aging – semi-finishing – finishing – brushing protection paint.
One-piece Extruded Aluminum Beam
• Based on the metal characteristics of aeronautical engineering aluminum alloys, it has lightweight and high rigidity, which ensures high-speed motion during laser processing
• Perfect dynamic performance. under the condition of satisfying accuracy, high-speed cutting of various graphics can be achieved.
• Long service life, it can keep the shape unchanged to a maximum extent, to ensure cutting accuracy and product quality.
![One-piece Extruded Aluminum Beam](https://www.andelaser.com/wp-content/uploads/2021/06/AD3015E-product-details-3.png)
High Quality Configuration
![Optimizing configuration_1](https://www.andelaser.com/wp-content/uploads/2021/06/AD3015E-product-details-4.png)
• Power operating range:10%~105%
• Light beam mass: BPP<2.5
• Service life of pumping source: 100,000h
• Maintenance free
![Optimizing configuration_2](https://www.andelaser.com/wp-content/uploads/2021/06/AD3015E-product-details-5.png)
• The collimator lens and focus lens are equipped in a drawer installation way, which is convenient for maintenance and replacement.
• Adopting a water-cooling heat sink inside to reduce the temperature of the cutting head to improve its service life.
Professional Control Software
• Support for DXF, PLT, LXD and other graphic data formats.
• Find edge: up to 500mm/s high speed with precision find sheet edge, alsoprovide optional find edge patterns to meet your production needs.
• Supports laser power control, in-flight cutting and jump, continuous cut-ting at a breakpoint, automatic edge search, keyhole processing, cuttinghead control, and etc.
• Technique: multiple piercing solutions for metal sheet of different thick-ness; piercing slags removal; vibration suppression; close-loop gas con-trol; separate layer technique for large, medium and small contour cut-ting, all to expand your machine production capability.
![Professional Cypcut Software](https://www.andelaser.com/wp-content/uploads/2021/06/AD3015E-product-details-5.jpg)
Imported Component Parts
![Imported Component Parts_1](https://www.andelaser.com/wp-content/uploads/2021/06/AD3015E-product-details-6.png)
• Automatic parallel compensation technology.
• lmprove processing range.
• Less mechanical components and motors cost.
• Increased running speed.
• Good dynamic response.
![Imported Component Parts_2](https://www.andelaser.com/wp-content/uploads/2021/06/AD3015E-product-details-7.png)
• High precision and speed, large inertia ratio.
• Stable performance and durability.
• Excellent dynamic response.
• Closed loop control method.
![Imported Component Parts_3](https://www.andelaser.com/wp-content/uploads/2021/06/AD3015E-product-details-8.png)
• Quiet,non-polluting, reliable and long-lasting.
• Achieve high precision and speed in cutting process.
• Excellent quality and stability, in accordance with internationalstandards.
![Hanli Water Chiller](https://www.andelaser.com/wp-content/uploads/2021/06/AD3015E-product-details-9.png)
Professional Water Chiller
• High precision temperature control function. Temperature control accuracy can reach ±1°C High temp for QBH connection/ optics and low temp. for laser devices.• Multiple alarm protection: The laser will stop working once it receives the alarm signal from the water chiller for protection purposes.
• Equipped with water pressure gauges, drain outlet with valve, and universal wheels. Water pressure gauges help monitor the discharge pressure of the water pump while universal wheels facilitate the moving of the chiller.
• Dualinlet and dual outlet connector& level gauge equipped. The Chiller inlet connects to the laser outlet connector. The Chiller outlet connects to the laser inlet connector.
• Cooling fan of famous brand installed. With high quality and low failure rate.
• Customized dust gauze is available and easy to take apart.
Ande Services
![Pre-sales Service](https://www.andelaser.com/wp-content/uploads/2023/12/ande-网站1600-服务_03.png)
![Consulting guidance](https://www.andelaser.com/wp-content/uploads/2023/12/ande-网站1600-服务_13.png)
![Sample display](https://www.andelaser.com/wp-content/uploads/2023/12/ande-网站1600-服务_15.png)
![Professional reception for factory visit](https://www.andelaser.com/wp-content/uploads/2023/12/ande-网站1600-服务_17.png)
![In-sales Service](https://www.andelaser.com/wp-content/uploads/2023/12/ande-网站1600-服务_05.png)
![Field analysis](https://www.andelaser.com/wp-content/uploads/2023/12/ande-网站1600-服务_23.png)
![Installation, commissioning & training](https://www.andelaser.com/wp-content/uploads/2023/12/ande-网站1600-服务_20.png)
![After-sales Service](https://www.andelaser.com/wp-content/uploads/2023/12/ande-网站1600-服务_07.png)
![Rapid response](https://www.andelaser.com/wp-content/uploads/2023/12/ande-网站1600-服务_26.png)
![Customer return visit](https://www.andelaser.com/wp-content/uploads/2023/12/ande-网站1600-服务_28.png)
Quality Control
![Planeness](https://www.andelaser.com/wp-content/uploads/2021/06/ande-网站1600-品控_01_03.png)
Ball screw installation test
![Quality Control_2](https://www.andelaser.com/wp-content/uploads/2021/06/ande-网站1600-品控_01_05.png)
Laser collimator detectsguide line
![Quality Control_3](https://www.andelaser.com/wp-content/uploads/2021/06/ande-网站1600-品控_01_07.png)
Rack gear parallelism test
![Quality Control_4](https://www.andelaser.com/wp-content/uploads/2021/06/ande-网站1600-品控_01_09.png)
Marble feet for lathe bedverticality tesr
![Quality Control_5](https://www.andelaser.com/wp-content/uploads/2021/06/ande-网站1600-品控_01_15.png)
3 axes coordinate meter tests coordinate setting precision
![Quality Control_6](https://www.andelaser.com/wp-content/uploads/2021/06/ande-网站1600-品控_01_16.png)
Quantity production with skilled technique and advanced
![Quality Control_7](https://www.andelaser.com/wp-content/uploads/2021/06/ande-网站1600-品控_01_17.png)
Every tiny parts is detected with many times
![Quality Control_8](https://www.andelaser.com/wp-content/uploads/2021/06/ande-网站1600-品控_01_18.png)
Measure sample geometrictolerances using 2D imaging device forquality assurance
Cutting Samples
![Cutting Samples](https://www.andelaser.com/wp-content/uploads/2021/06/AD3015E-product-details-10-1024x370.jpg)
Application scenarios
![AD3015H Slide](http://www.andelaser.com/wp-content/plugins/revslider/public/assets/assets/transparent.png)
![](http://www.andelaser.com/wp-content/uploads/2021/05/行业应用_03.jpg)
![](http://www.andelaser.com/wp-content/uploads/2021/05/行业应用_05.jpg)
![](http://www.andelaser.com/wp-content/uploads/2021/05/行业应用_07.jpg)
![](http://www.andelaser.com/wp-content/uploads/2021/05/行业应用_09.jpg)
![](http://www.andelaser.com/wp-content/uploads/2021/05/行业应用_15.jpg)
![](http://www.andelaser.com/wp-content/uploads/2021/05/行业应用_16.jpg)
![](http://www.andelaser.com/wp-content/uploads/2021/05/行业应用_17.jpg)
![](http://www.andelaser.com/wp-content/uploads/2021/05/行业应用_18.jpg)
![](http://www.andelaser.com/wp-content/uploads/2021/05/行业应用_23.jpg)
![](http://www.andelaser.com/wp-content/uploads/2021/05/行业应用_24.jpg)
![](http://www.andelaser.com/wp-content/uploads/2021/05/行业应用_25.jpg)
![](http://www.andelaser.com/wp-content/uploads/2021/05/行业应用_26.jpg)
Laser cutting machine: able to cut a variety of metal plates, mainly suitable for rapid cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, aluminum, various alloy plates, and other metal materials; widely used in: kitchen electrical, sheet metal Chassis frame, frame equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment,Various metal products, sheet metal cutting and other industries.
![Application scenarios of laser cutting machines](https://www.andelaser.com/wp-content/uploads/2021/04/FT6-en2.jpg)
Laser cutting machine: able to cut a variety of metal plates, mainly suitable for rapid cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, aluminum, various alloy plates, and other metal materials; widely used in: kitchen electrical, sheet metal Chassis frame, frame equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment,Various metal products, sheet metal cutting and other industries.
