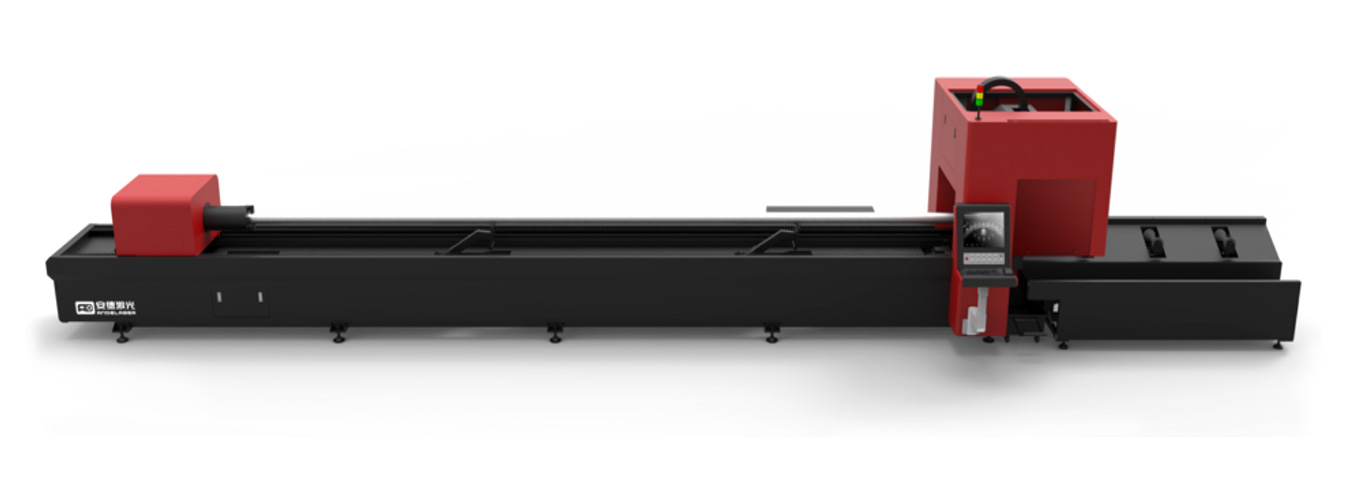

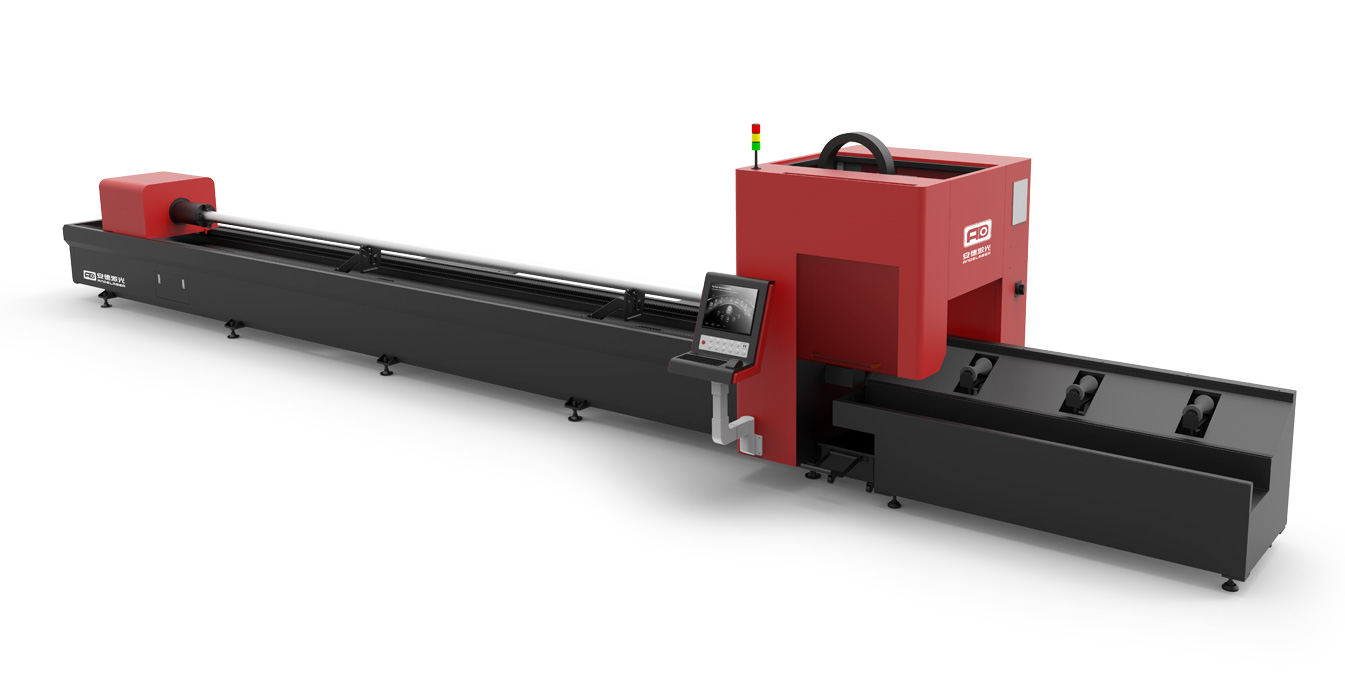

ADT6022

Technical Parameters

Model No.

ADT6016

ADT6012

Tube Diameter

φ10-220mm □10-150mm

φ10-160mm □10-110mm

φ10-120mm □10-80mm

Max Tube Weight

200kg

150kg

100kg

Chuck Rotational Speed

100m/min

Maximum Movement Speed

100m/min

Maximum Acceleration

1.0G

Laser Power

1000W-3000W

Multiful function & application to ensure high effiency

• Professional and multifunctional pipe cutting, sawing, drilling, and slotting can all be completed by one machine, saving complex processing procedures.
• Wide range application, suitable for various pipe materials such as round pipe, square pipe, oval pipe, and special-shaped pipe; Stainless steel, carbon steel, aluminum, copper, and other metal materials applicable.

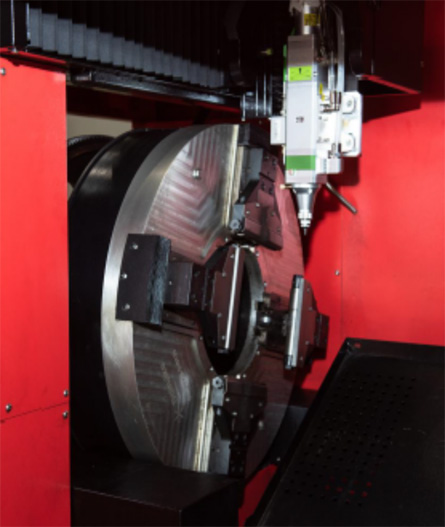

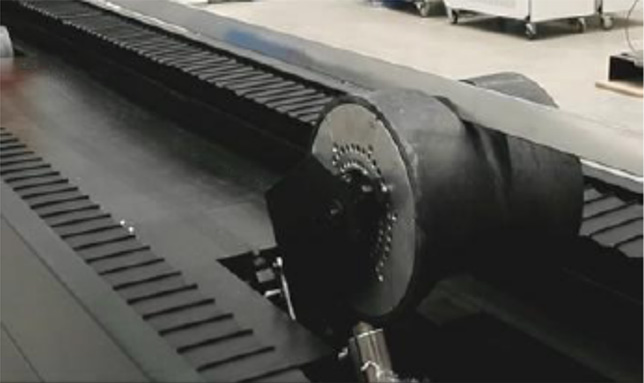

Fully Automatic Pneumatic Heavy-Duty Type Chuck

• Automatic tube detection, no need to change clamps manually. Adjust the clamping tube according to different tubes, and at the same time, it will not deform the tube due to over-clamping.

• Choose a heavy-duty chuck. The heavy-duty chuck avoids the problem of large accuracy errors in the chuck caused by overweight pipes.

• The chuck has a longer service life

• The chuck has greater clamping force, to prevent the chuck claws from loosening during the rotation of heavy pipes.

High Quality Configuration

• Electro-optical conversion efficiency:>25%
• Power operating range:10%~105%
• Light beam mass: BPP<2.5
• Service life of pumping source: 100,000h
• Maintenance free

• Completely sealed internal structure can avoid optical parts polluted by dust.
• The collimator lens and focus lens are equipped in a drawer installation way, which is convenient for maintenance and replacement.
• Adopting a water-cooling heat sink inside to reduce the temperature of the cutting head to improve its service life.

Imported Component Parts

Original imported Helical Gear Rack and Linear Guide Rail

• Smooth transmission.
• Quiet, non-polluting, reliable, and long-lasting
• Achieve high precision and speed in the cutting process.
• Excellent quality and stability, under international standards.

Precision System andElectrical Parts

• High precision and speed, large inertia ratio.
• Stable performance and durability.
• Excellent dynamic response.
• Closed loop control method

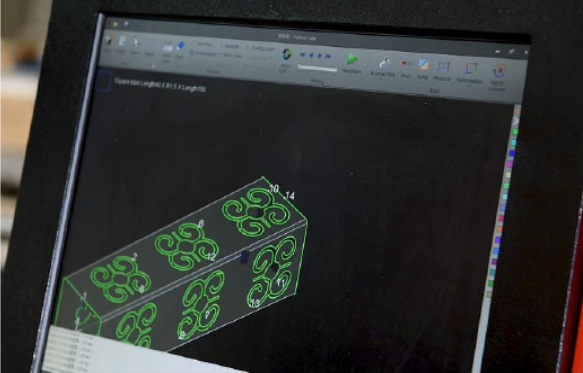

Professional Control Software for Tube

• FSCUT3000S is an improved version of FSCUT3000, a control system developed for pipe machining, supporting high precision and high-efficiency cutting of square, round, runway, and oval drawn tubes, as well as Angle and channel steels.
• The workpiece with a stable deviation of the tube surface, can effectively compensate for the regular cutting deviation, reduce the accuracy requirement of the raw material, and reduce waste.
• Using the cutting head to align the tube head can effectively reduce the time of manual alignment and reduce the front-end waste of manual alignment

Professional Water Chiller

• High precision temperature control function. Temperature control accuracy can reach ±1°C High temp. for QBH connection/ optics and low temp. for laser devices.

• Multiple alarm protection: The laser will stop working once it receives the alarm signal from the water chiller for protection purposes.

• Equipped with water pressure gauges, drain outlet with valve, and universal wheels. Water pres.sure gauges help monitor the discharge pressure of the water pump while universal wheels facilitate the moving of the chiller.

• Dualinlet and dual outlet connector& level gauge equipped. The Chiller inlet connects to the laser outlet connector. The Chiller outlet connects to the laser inlet connector.

• Cooling fan of famous brand installed. With high quality and low failure rate.

• Customized dust gauze is available and easy to take apart.

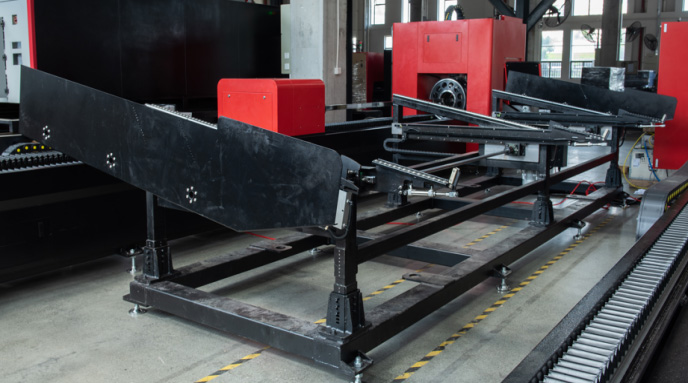

Segmented variable diameter wheel

• The segmented variable diameter wheel supports escrowing, which is suitable for different pipe materials such as round pipe and square pipe to solve the problem of deformation of long pipe in the process of cutting and transmission.

Ande Services

Quality Control

Ball screw installation test

Laser collimator detectsguide line

Rack gear parallelism test

Marble feet for lathe bedverticality tesr

3 axes coordinate meter tests coordinate setting precision

Quantity production with skilled technique and advanced

Every tiny parts is detected with many times

Measure sample geometrictolerances using 2D imaging device forquality assurance

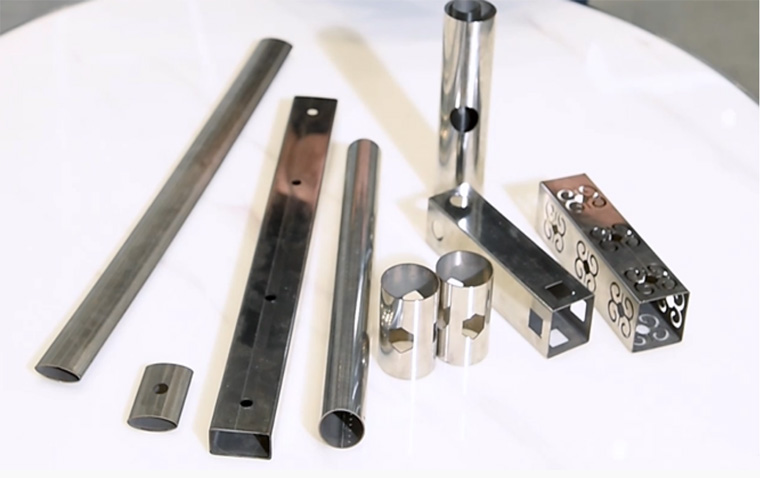

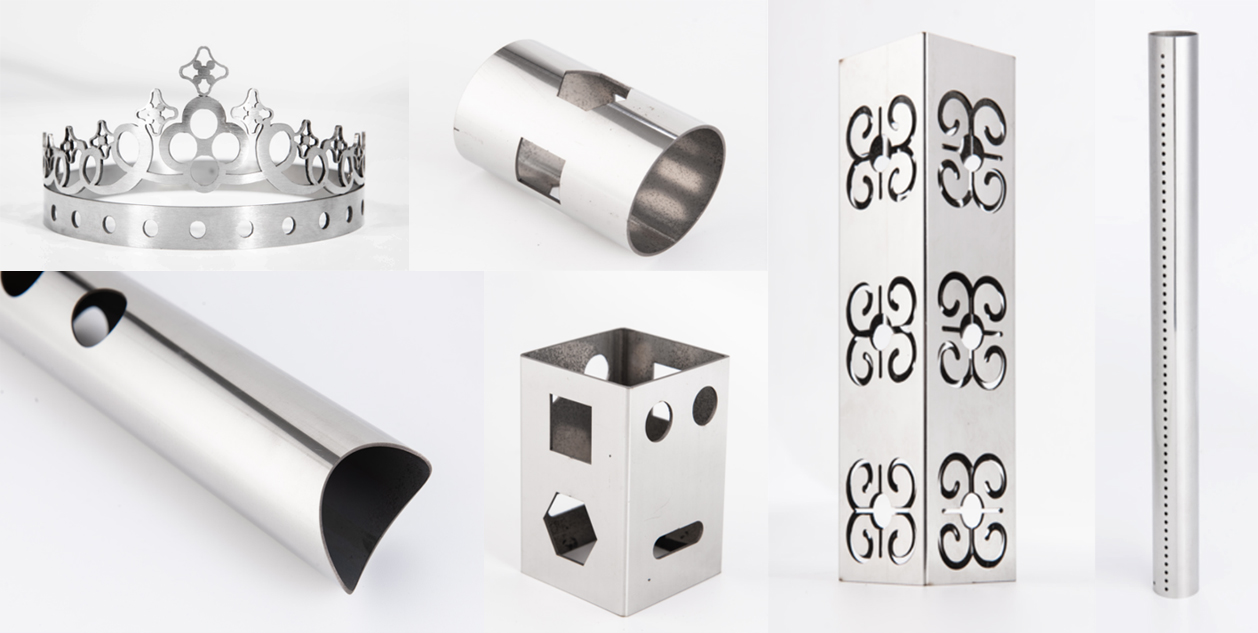

Cutting Samples

Application scenarios

Laser cutting machine: able to cut a variety of metal plates, mainly suitable for rapid cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, aluminum, various alloy plates, and other metal materials; widely used in: kitchen electrical, sheet metal Chassis frame, frame equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment,Various metal products, sheet metal cutting and other industries.
