Fully Automatic Laser Tube Cutting Machine For Round Tubes T - series
Application scenarios :
Laser tube cutting machine: can cut a variety of metal tubes, mainly suitable for rapid cutting of stainless steel tubes, carbon steel tubes, aluminum tubes, and other various kinds of metal tubes.

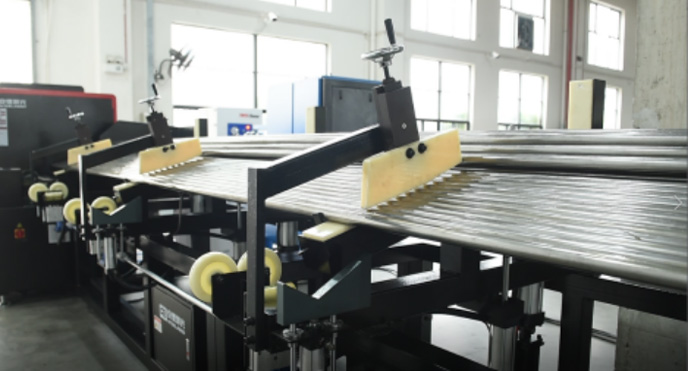

Fully Automatic In Bundle Loading Feeding And Cutting
Self-developed servo transmission system to ensure fast and accurate transmission execution.
Fully automatic in bundle loading, feeding and cutting, reducing employees’ work and saving labor cost.
High Speed Cutting
1 second per cut for the thin material,
rapidly increasing production effciency.

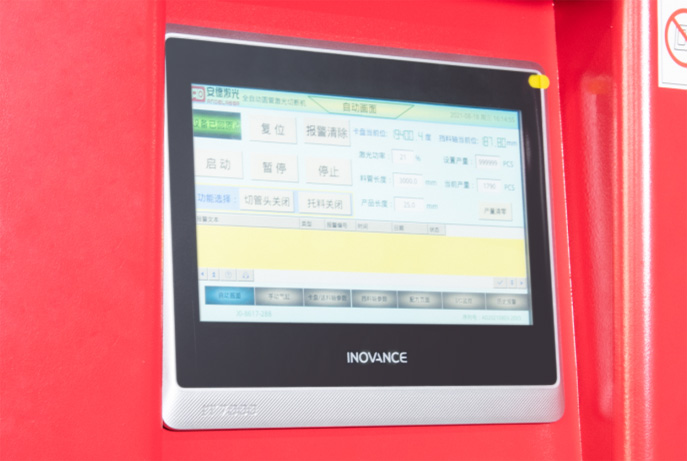

Simple Operation
The operation interface is easy to operated and no 3D drawing is required.The skill requirements for employees are simple.

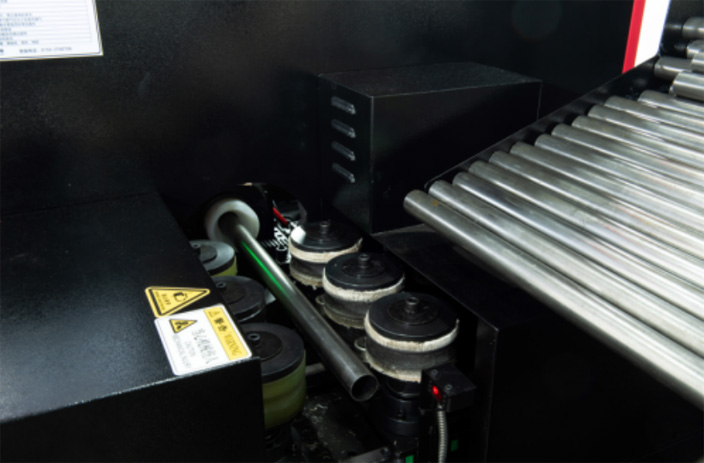

Automatic Continuous Feeding
The shortest tail material can reach 0-40mm,
reducing material consumption.

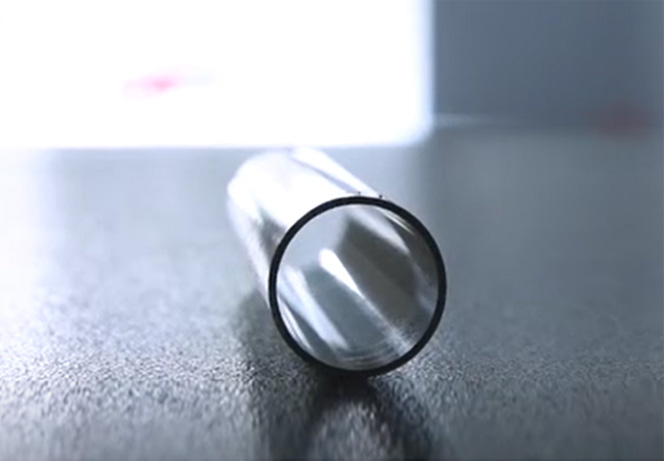

High Quality Cutting
The cutting surface is smooth without burrs.
The automatic dislagging function is optional to meet the requirements of clean inner wall without slag.
Optimizing configuration
Well-known Brand Laser Generator
Stable performance, long service life
High quality laser cutting head.
Technical Parameters：
Model No.
AD T40
AD T70
Pipe Diameter
φ8-38mm
φ8-68mm
Pipe Length
1000mm - 7000mm
Cutting Length
≤1000mm
Positioning Accuracy
±0.2mm
Repositioning Accuracy
±0.1mm
Maximum Movement Speed
120m/min
Maximum Acceleration
1.5G

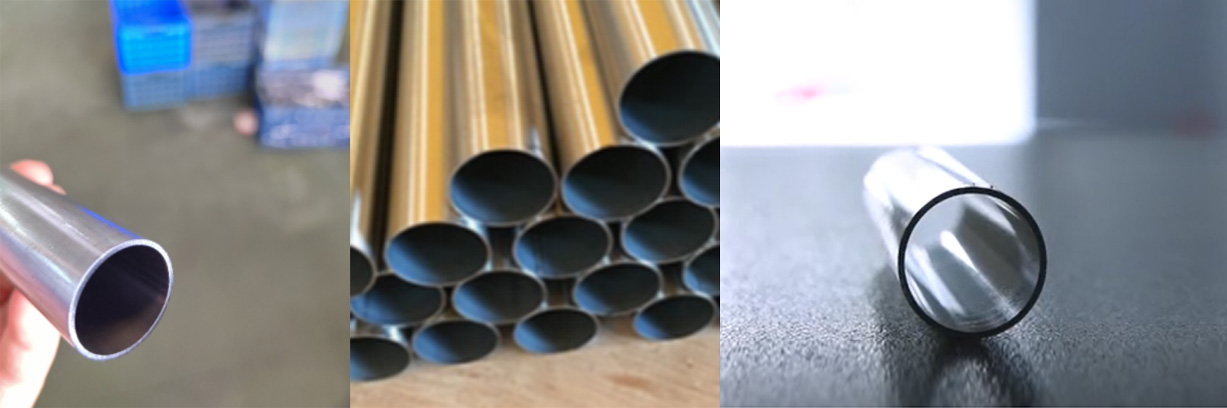

Cutting Samples ：
