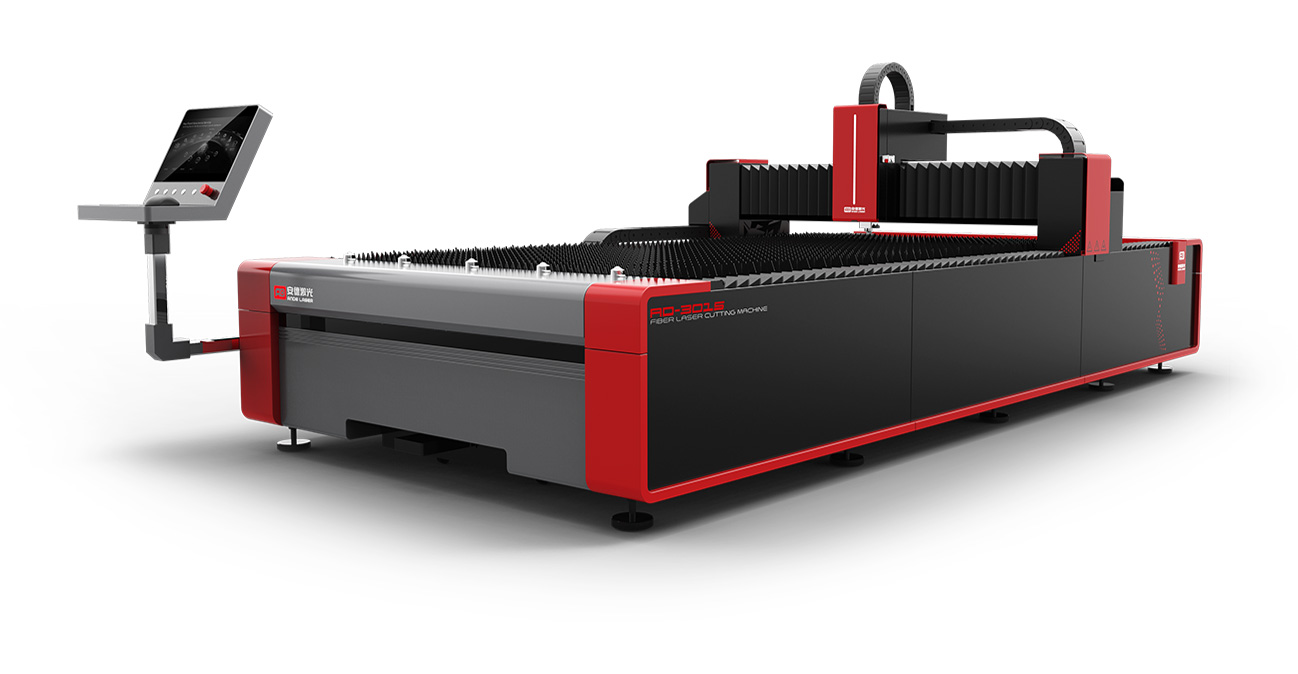

Single Platform Fiber Laser Cutting Machine For Plates - A series

Application scenarios :

Application scenarios of laser cutting machines

        Laser cutting machine: able to cut a variety of metal plates, mainly suitable for rapid cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, aluminum, various alloy plates, and other metal materials; widely used in: kitchen electrical, sheet metal Chassis frame, frame equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment,Various metal products, sheet metal cutting and other industries.

Characteristic:

Affordable and economical laser cutting machine model for beginners

Automatic tracking systems

Automatic Tracking Systems

Linear drives

Linear Drives

Components of famous brand

Components of famous brand

Cypcut System

Cypcut System

Automatic measurement

Automatic Measurement

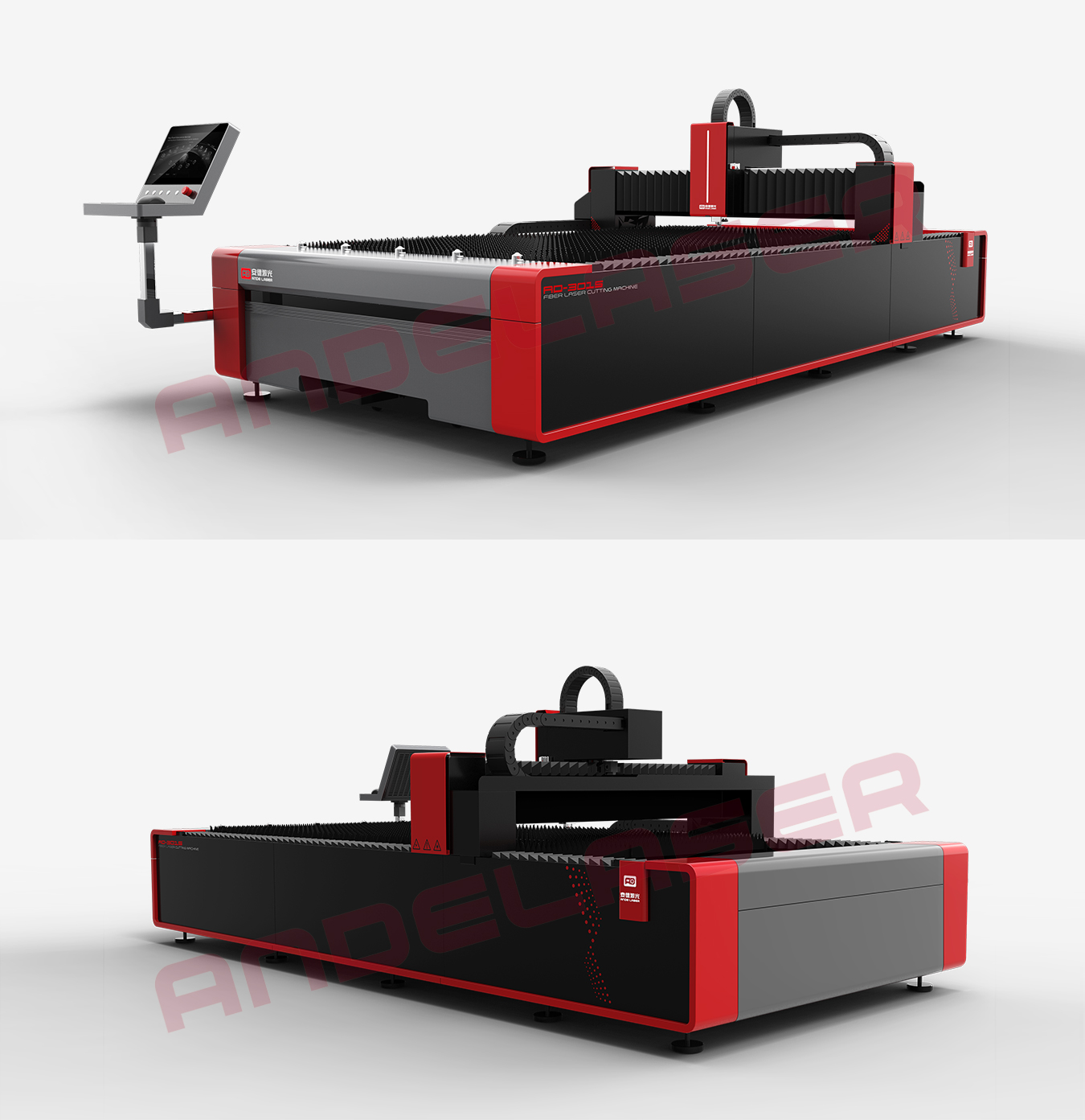

Fiber Laser Cutting Machine For Metal Plate

Third-generation Aluminum Beam

The one-piece extruded aluminium beam is subjected to professional finite element analysis of dynamic and static characteristics to ensure superior stability.

Third-generation Aluminum Beam

Good toughness and ductility.

Light weight and high rigidity,good dynamic performance, which can achieve high speed cutting while satisfying accuracy.

Long service life without deformation

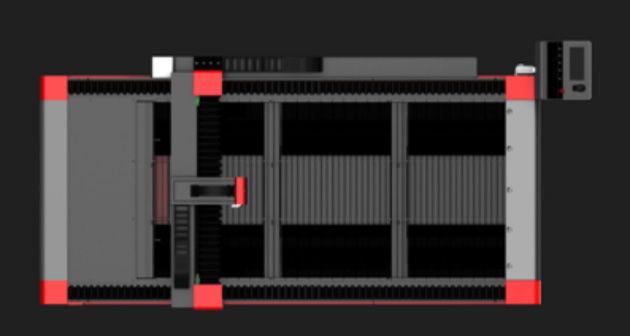

Open Bed Design For Cutting Platform

It is able to load material on front, left and right side flexibly and convenientely.

Open Bed Design For Cutting Platform
Integrated And Compact Machine Design

Integrated And Compact Machine Design

4500*2200mm compact size and small footprint

to start sheet metal cutting anywhere, anytime.

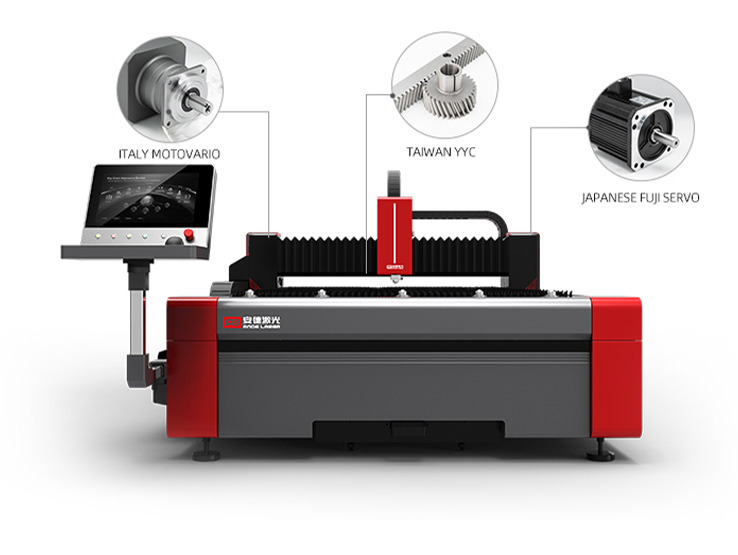

Imported Component Parts

The operation display and keyboard are in-built design, which saves cabinet space and reduces the footprint of the equipment in the production site.

Imported Component Parts

Optimizing Configuration

Optimizing Configuration
Optimizing Configuration
Optimizing Configuration

Well-known Brand Laser Generator

Stable performance, long service life

High quality laser cutting head.

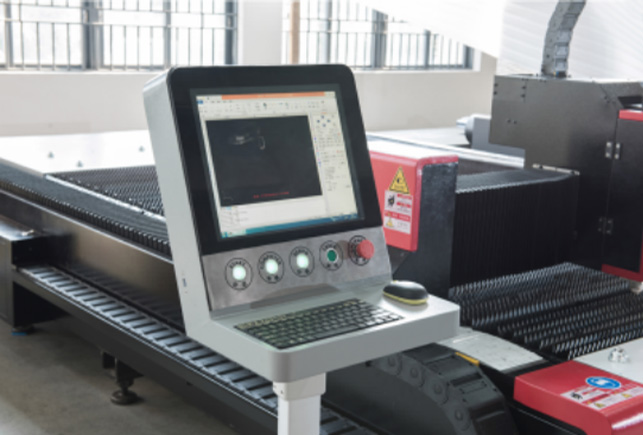

Cypcut Control System



*Ultra-high-speed scanning and cutting with micro-connection

*Easy to operate even by green hands

*Compatible with multiple files, incl. DXF, DWG, PLT, NC code

*Improve stock layout and material utilization by 20% and 9.5% by its built-in nesting software

*Real-time monitoring of core components

Cypcut Control System

Technical Parameters:

Machine Model

AD3015A

Laser Power

1000W、1500W、2000W、3000W

Cutting Area

3000x1500mm

X/Y-axis Positioning

±0.05mm/m

X/Y-axis Repositioning

±0.03mm/m

Max. Compound Travel

80m/min

Max. Acceleration

0.6G

Power Supply

380V 50Hz

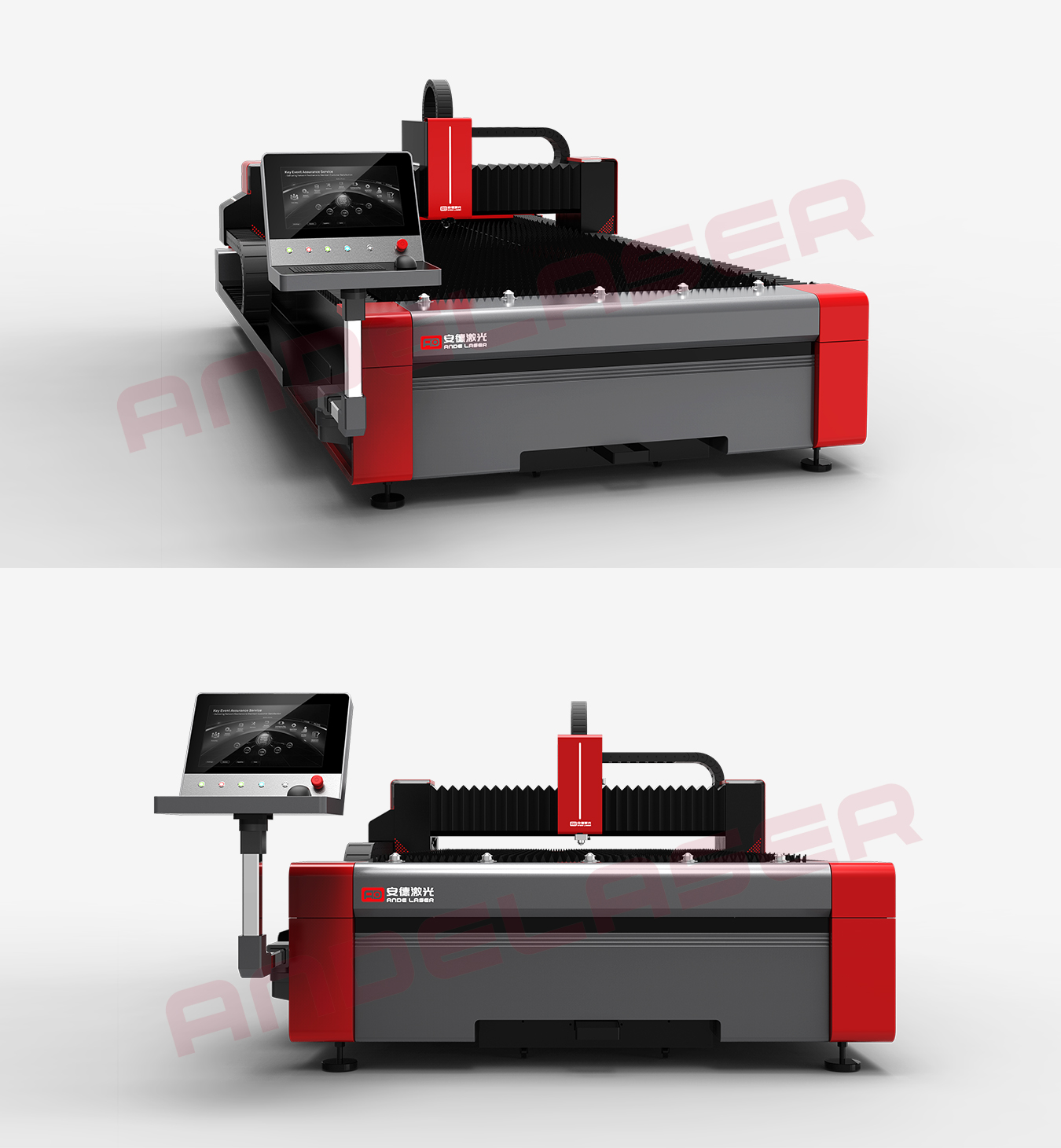

Machine Display:

Cutting Samples:

Cutting Samples of plate cutting
